GRAPHICAL REPAIR and REWORK STATION

Graphical Documentation of Board Design and Fixture Design.

         Key Benefits and Capabilities:

• Reduce time and money spent in Repair & Rework
• Quickly identify any Test-Point location
• Quickly locate any Component or Component Pin
• Quickly identify most likely places for Shorted Nets
• Complete Clam-Shell Support
• View Board from Top or Bottom Side
• Visually see which pads are probed

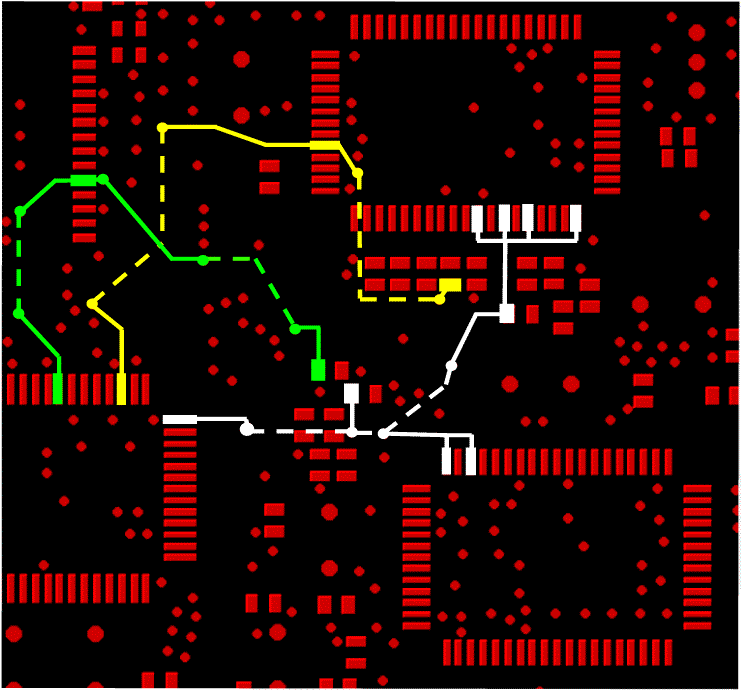

• Highlight Network (Pads and Traces)
• Follow Traces through layers of board
• Build database of Board Faults and Repairs
• Graphical Representation of Board & Fixture
